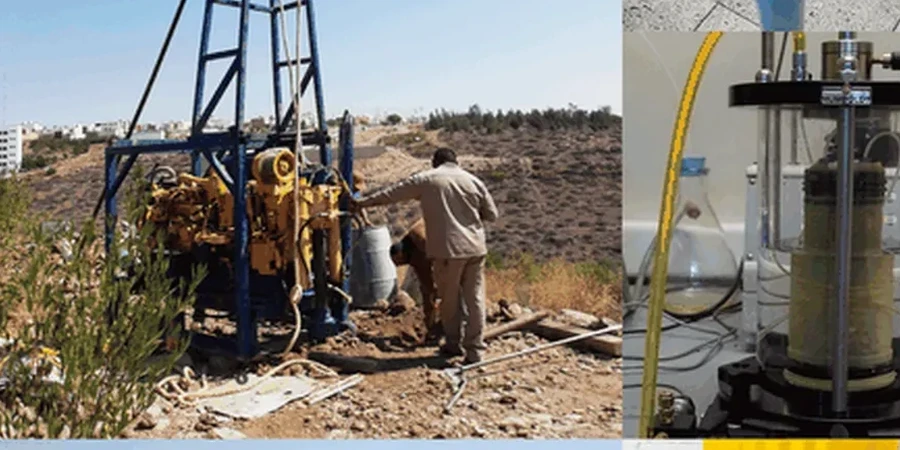

Vibrocompaction Design in Milwaukee: Densifying Fill and Loose Sands for Safer Foundations

Milwaukee's glacial history left behind a complex mix of soils. Much of the city center sits on loose, water-saturated sands and silty fills that just don't perform under load without help. That's where vibrocompaction design steps in. The IBC and ASCE 7 set the bar for ground improvement here, and meeting those standards starts with understanding the local geology. When a site near the Menomonee Valley shows N-values below 10, you're dealing with a deposit that needs densification before any footing goes in. In our experience, skipping this step leads to excessive settlement and costly repairs. A well-executed CPT test gives us the continuous profile we need to map the loose zones and design the compaction grid accurately. The goal is simple: turn weak, compressible ground into a reliable bearing stratum without removing a single cubic yard of soil.

In Milwaukee's post-glacial terrain, vibrocompaction is often the difference between a standard foundation and a deep foundation. Getting the design right saves six figures.

Our approach and scope

The workhorse on a Milwaukee job is typically a depth vibrator suspended from a crawler crane. This probe, powered by an electric or hydraulic motor, generates horizontal vibrations that rearrange the soil particles into a denser state. We pair the vibrator with water or air jets to help it penetrate to the target depth. The real design work happens before the rig ever arrives. We analyze the grain size distribution to confirm the soil is predominantly granular—vibrocompaction doesn't work on clays. With that data, we determine the probe spacing, vibration frequency, and hold time at each lift. For urban sites near the lakefront, the design must also account for the high groundwater table, which complicates the compaction process. A grain size analysis becomes critical to ensure the soil falls within the treatable range, typically less than 15 percent passing the #200 sieve.

Local geotechnical context

Milwaukee's growth from a fur trading post into an industrial powerhouse left a legacy of urban fill. The Third Ward and Walker's Point, for instance, were built on debris, sawdust, and dredged material from the harbor. We see this in our borings all the time—strange pockets of organics, old foundations, and loose sand lenses that were never engineered. Designing vibrocompaction in these conditions requires a forensic approach. You can't just assume a uniform profile. A seismic refraction survey often helps us map the bedrock depth and identify buried obstructions that could stop a vibrator. The risk of missing a soft zone is differential settlement, which cracks walls and destroys floor slabs. That's why we verify every single probe location against the design grid and adjust on the fly when the subsurface throws a curveball.

Technical parameters

Parameter	Typical value
Typical Treatment Depth	30 to 75 feet
Required Soil Type	Granular, less than 15% fines
Probe Spacing (Triangular Grid)	5 to 12 feet
Vibrator Power	130 to 200 HP
Target Relative Density	70% to 85%
Pre-Treatment N-Value	Usually below 15 blows/foot
Post-Treatment Verification	CPT or SPT within the grid

Other technical services

Feasibility and Design

We start with a desktop review of existing geotechnical data and local geologic maps. Then we run the lab tests—sieve analysis and Atterberg limits—to confirm treatability. The final design includes probe grid layout, lift heights, energy input, and acceptance criteria.

Construction Support and Verification

We stay involved during the field work. Our team monitors the real-time data from the vibrator and performs post-compaction testing using CPT or SPT to verify that the specified relative density has been achieved across the entire treatment zone.

Quick answers

What soil types in Milwaukee are suitable for vibrocompaction?

Primarily clean sands and gravels with less than 15 percent passing the #200 sieve. The glacial outwash and alluvial deposits found along the Milwaukee River and Kinnickinnic River corridors are often ideal candidates. Silts and clays do not respond to vibratory densification and require other methods like stone columns or rigid inclusions.

How much does vibrocompaction design cost for a typical Milwaukee lot?

For a standard commercial lot in the area, design fees typically range from US$1.370 to US$4.800. The final cost depends on the size of the treatment area, the required depth, and the complexity of the verification testing program.

How do you verify that the ground improvement worked?

We run a verification program using CPT or SPT borings placed between the probe points. The goal is to prove that the post-treatment relative density meets the design target, usually 70 to 85 percent. We compare the before and after blow counts or tip resistance directly.

Can vibrocompaction be used right next to existing buildings in downtown Milwaukee?

It depends on the distance and the foundation type. The vibrations do propagate, so we conduct a vibration monitoring plan for sensitive structures. In many cases, we can adjust the frequency and sequence the work to stay within safe limits, but for very close proximity, we might recommend a different technique.
